Details

---

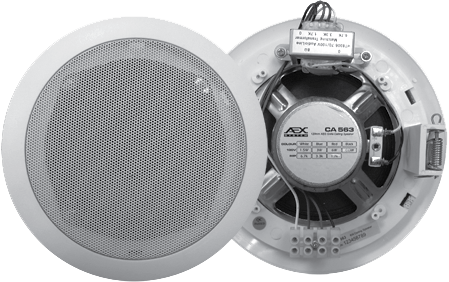

AEX CA563 6W Ceiling Loudspeaker (Spring/Mesh)

The AEX CA563 is a 6W ceiling loudspeaker designed for seamless integration into various environments, offering both aesthetic appeal and high-quality audio performance. AEX CA 563 an excellent choice for environments such as offices, retail spaces, and public areas where both sound quality and visual integration are essential.



KEY FRATURES:

• Slim Profile with ABS Grille: The speaker features a sleek design with an epoxy-coated fine metal mesh grille, allowing it to blend effortlessly with most ceiling surfaces.
• Spring-Mounted Installation: Equipped with spring mounts, the CA 563 ensures easy and secure installation, enhancing the overall aesthetics by eliminating visible screws.
• High-Quality Sound Reproduction: Incorporating a 120 mm dynamic full-range loudspeaker component, it delivers clear and balanced audio suitable for both voice announcements and background music.
• Built-in 6W Multi-Tapping Transformer: Designed for compatibility with 100V line systems, the integrated transformer offers multiple power tap settings, providing flexibility for various installation requirements.



SPECIFICATIONS:

	AEX CA563
Rated Input	100V : 6W (6W - 3W - 1.5W) 70V : 3W (3W - 1.5W - 0.75W)
Impedance	1.667kΩ / 3.33kΩ / 6.67kΩ
Maximum Power	9W
Rated Frequency Range	100Hz - 20kHz
Frequency Response (Peak -20dB)	64Hz - 20kHz
Sensitivity 1W @ 1m	92dB ± 1dB
Coverage Angle (1kHz, -6dB)	180˚
Speaker Component	Woofer: 120mm Dynamic Full-range Loudspeaker
Tweeter	NA
Safety	Acc. to EN60065
Material & Finish	Frame: ABS, White Grille: Aluminium Mesh, White
Dimensions	Ø175 x 54mm
Weight	500 gram
