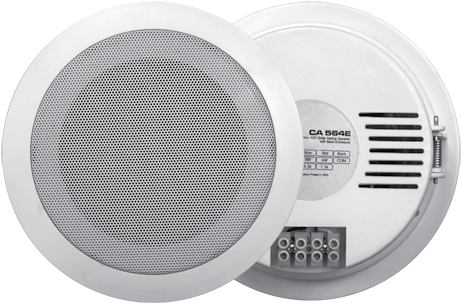

AEX CA564E 6W Ceiling Loudspeaker c/w ABS Enclosure (Spring/Mesh)

The AEX CA564E is a 6W ceiling loudspeaker designed for high-quality audio performance and seamless integration into various environments. AEX CA564E is an excellent choice for environments requiring reliable audio performance and a discreet, stylish appearance.



KEY FRATURES:

• Elegant Design: Features a slim-profiled ABS grille in pure white, complemented by an epoxy-coated fine metal mesh, ensuring a sleek appearance that blends with most ceiling surfaces.
• Integrated Enclosure: Comes readily fitted with an enclosure, making it suitable for installations that require a back enclosure for enhanced sound quality and protection.
• High-Quality Audio: Equipped with a 120 mm dynamic full-range loudspeaker component, delivering clear and balanced sound for both voice and music applications.
• Spring-Mounted Installation: Utilizes spring mounts for easy and secure installation, eliminating visible screws and enhancing aesthetics.
• Versatile Application: Ideal for various settings, including offices, retail spaces, and public areas, where both sound quality and visual integration are essential.



SPECIFICATIONS:

	AEX CA564E
Rated Input	100V : 6W (6W - 3W - 1.5W) 70V : 3W (3W - 1.5W - 0.75W)
Impedance	1.667kΩ / 3.33kΩ / 6.67kΩ
Maximum Power	9W
Frequency Response	110Hz - 20kHz
Sensitivity 1W @ 1m	92dB ± 1dB
Coverage Angle (1kHz, -6dB)	180˚
Speaker Component	Woofer: 120mm Dynamic Full-range Loudspeaker
Tweeter	NA
Safety	Acc. to EN60065
Material & Finish	Frame: ABS, White Grille: Aluminium Mesh, White Enclosure: ABS, White
Dimensions	Ø178 x 86mm
Weight	600 gram
