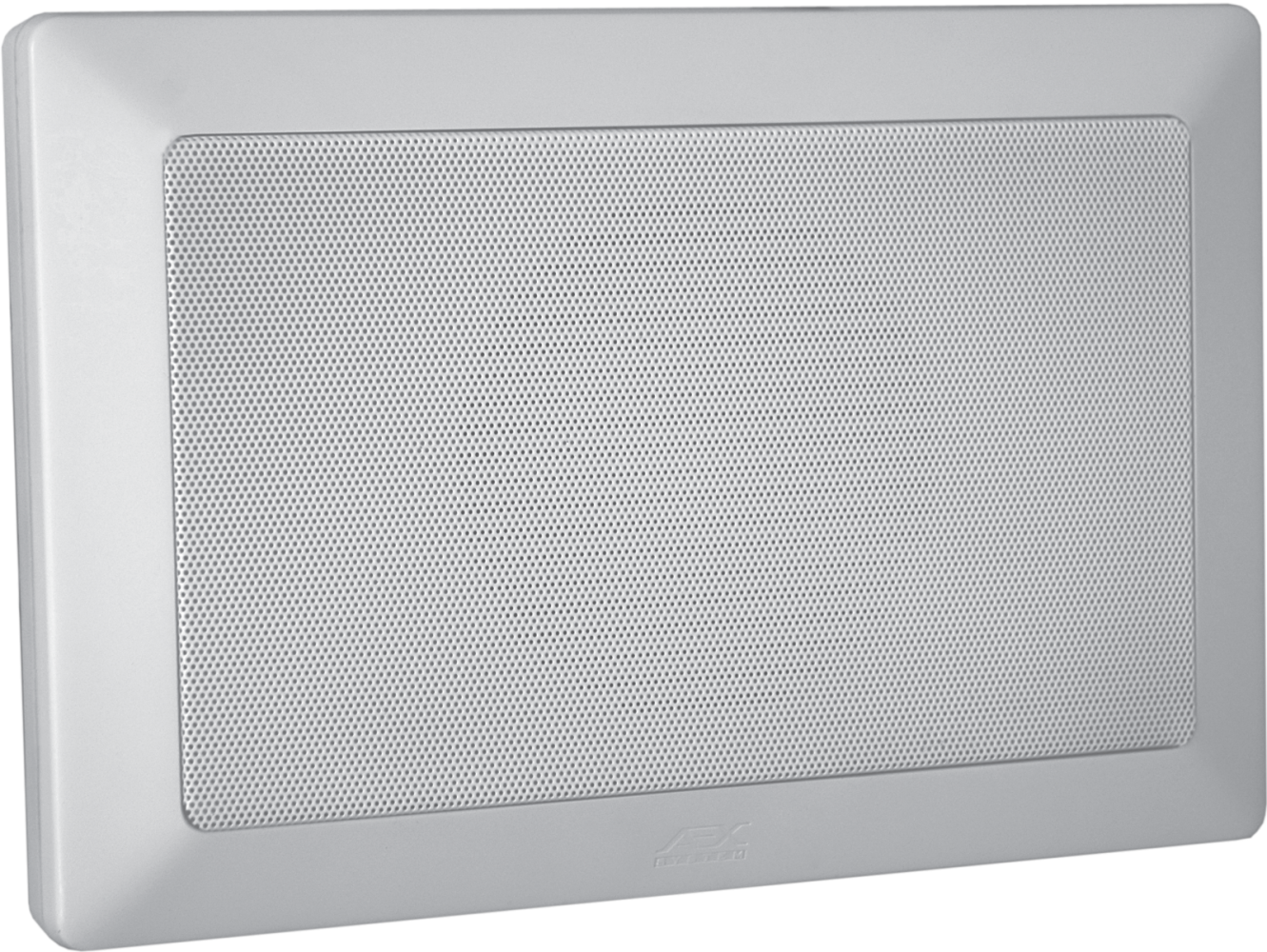

AEX WM563 6W Surface Mounted Wall Loudspeaker

The AEX WM563 is a 6W surface-mounted wall loudspeaker designed for versatile applications, particularly in areas without false ceilings, such as stairwells and rooms with concrete ceilings. It is an excellent choice for delivering reliable and clear audio in challenging installation environments.



KEY FRATURES:

• High-Quality Sound Reproduction: Equipped with a 120 mm dynamic full-range loudspeaker component, the WM563 delivers clear and undistorted sound, ensuring excellent speech and music reproduction even in environments with high ambient noise.

• Flexible Mounting Options: The loudspeaker supports both horizontal and vertical mounting orientations without visible screws, maintaining a clean aesthetic. Additionally, it can be tilted to direct sound projection more precisely.

• Durable and Aesthetic Design: Featuring a fine metal mesh cover on the front baffle, the WM563 combines improved aesthetics with enhanced protection, making it both visually appealing and robust.

• Integrated Line-Matching Transformer: The loudspeaker comes with a multiple tapping line-matching transformer, making it suitable for 70V or 100V line distributed speaker systems, offering flexibility in various installation scenarios.

• Tamper-Proof Installation: Designed for permanent installation, the WM563 ensures that the unit remains securely in place, preventing unauthorized removal and enhancing security.



SPECIFICATIONS:

	AEX WM563
Rated Input	100V : 6W (6W - 3W - 1.5W) 70V : 3W (3W - 1.5W - 0.75 W)
Impedance	1.7kΩ (1.7kΩ / 3.33kΩ / 6.7kΩ)
Maximum Power	9W
Rated Frequency Range	110Hz - 20kHz
Sensitivity 1W @ 1m	92dB ± 1dB
Coverage Angle (1kHz, -6dB)	70˚
Speaker Component	Woofer: 120mm Dynamic Full-range Loudspeaker
Tweeter	NA
Material & Finish	Enclosure: ABS, White Grille: Aluminium Mesh, White
Dimensions (W x H x D)	260 x 173 x 65 mm
Weight	0.8kg
