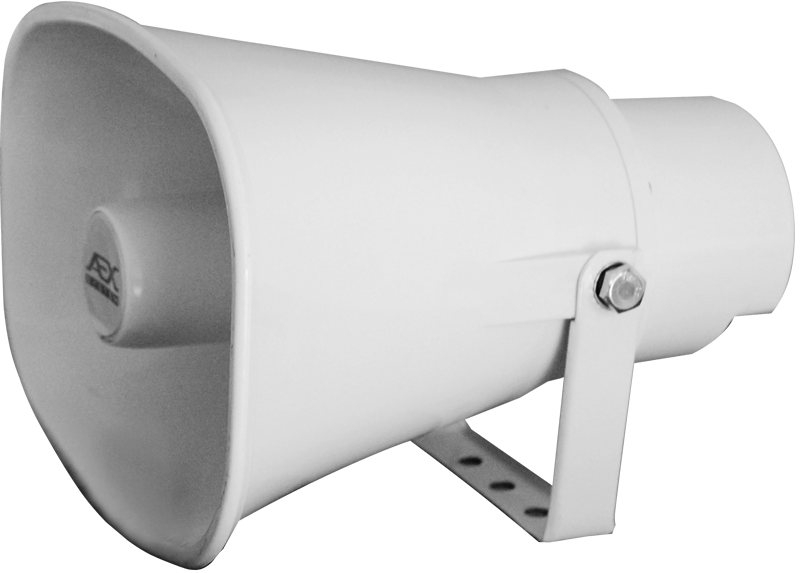

AEX RH082 20W ABS Paging Horn Loudspeaker

​The AEX RH082 is a 20W ABS paging horn loudspeaker engineered for clear speech reproduction in environments with high ambient noise. AEX RH082 an excellent choice for areas such as basement car parks, open-air theme parks, and heavy machinery rooms where clear audio projection is essential.



KEY FRATURES:

• High-Quality Sound Output: Capable of handling up to 20W at 100V line input, producing a minimum SPL of 113 dB at 1W/m, 1 kHz, ensuring clear and intelligible audio.

• Durable ABS Construction: Made from high-impact ABS material, offering strength, lightweight properties, and resistance to corrosion and UV light.

• Weatherproof Design: Dust and water protected to IP65 standards, making it suitable for both indoor and outdoor applications in harsh environmental conditions. ​

• Adjustable Mounting: Equipped with a swivel mounting bracket for easy and precise positioning during installation. ​

• Flexible Power Tappings: Features an integrated line matching transformer with multiple power tappings (20W, 10W, 5W) for compatibility with 100V or 70V line distributed speaker systems.



SPECIFICATIONS:

	AEX RH082
Rated Input	100 V : 20 W (20W - 10W - 5 W) 70 V : 10 W (10W - 5W - 2.5 W)
Impedance	500 Ω (500 - 1k - 2kΩ)
Maximum Power	30W
Rated Frequency Range	250Hz - 12.5kHz
Sensitivity 1W @ 1m	113dB ± 1dB
Coverage Angle (1kHz, -6dB)	165˚
Material & Finish	Horn flare: ABS, white Reflector horn: ABS, white Bracket: Aluminium, white Screw/Bolt: Stainless steel
Safety	Acc. to EN 60065
Dust & Water Protection	IP65 (acc. to IEC 529)
Operation Temperature	-25 ºC to 55 ºC
Dimensions (W x H x D)	Ø220×160 mm
Weight	1.48kg
